Automobile

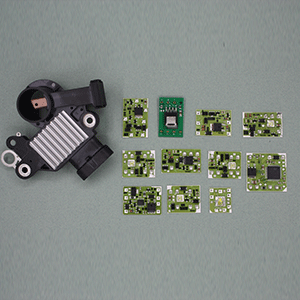

- VOLTAGE REGULATOR
- 기능 : 자동차 Alternator의 발전량을 일정하게 유지시키고, 배터리를 충전하는 장치임.
- Battery System : 12V/24V
- Setting Voltage : 14.1V~14.7V, 28.1V~28.85V
- Temp. Coefficient : -7mV/℃ ~ -10mV ℃
- 종류별 상세 스팩
종류별 상세 스팩 No, Part No, Setting Voltage, Temperature Characteristic, Size, High Voltage Capability, Datasheet 등 목록을 나타낸 표입니다.
No. Part No. Setting Voltage Temperature
CharacteristicSize High Voltage
CapabilityDatasheet 1 WIT-001 14.6±0.2 -7mV/℃ 22.0X16.0 350V
2 WIT-002 14.4±0.2 / 15.6±0.2 -10mV/℃ 22.0X16.0 350V 3 WIT-003 14.4±0.2 / 15.6±0.2 -7mV/℃ 30.0x22.0 100V 4 WIT-004 14.4±0.2 / 15.6±0.2 -10mV/℃ 30.1X18.1 350V 5 WIT-005 14.7±0.2 -7mV/℃ 30.1X18.1 350V 6 WIT-006 14.4±0.2 / 15.6±0.2 -10mV/℃ 30.0X22.0 350V 7 WIT-007 28.5±0.2 -7mV/℃ 25.4X23.0 350V 8 WIT-008 28.5±0.2 -10mV/℃ 22.0X16.0 350V 9 WIT-009 14.7±0.2 / 15.6±0.2 -7mV/℃ 24.4X23.0 350V 10 WIT-010 14.4±0.2 / 15.6±0.2 -10mV/℃ 28.0x21.0 350V 11 WIT-011 14.7±0.2 -7mV/℃ 25.4X23.0 350V 12 WIT-012 14.4±0.2 / 15.6±0.2 -7mV/℃ 25.4X23.0 350V

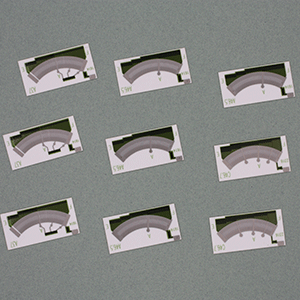

FUEL GAUGE

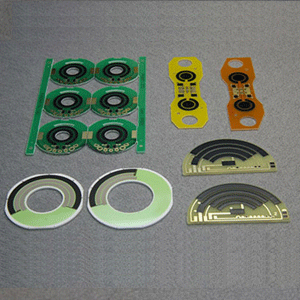

POSITION SENSOR

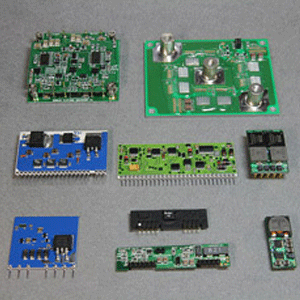

AIR BLOWER CONTROLLER

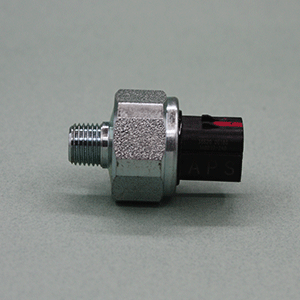

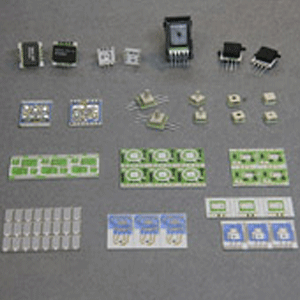

PRESSURE SENSOR

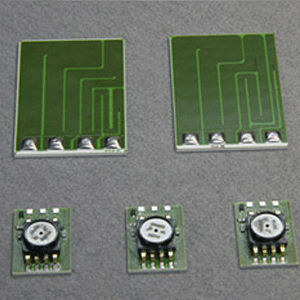

Pressure Sensor

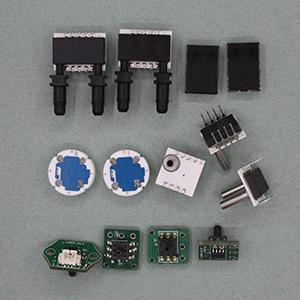

PRESSURE SENSOR
(PRESSURE RANGE : 0.01~100psi)

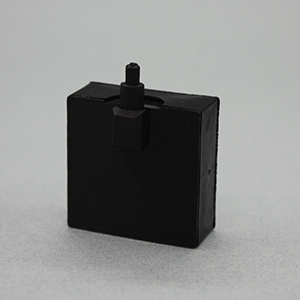

HUMIDITY SENSOR
PRESSURE SENSOR
(TMSP-0600S)
전장용 압력센서
- SENSOR SWITCH SPECIFICATION
Supply Voltage(± 15%) 12 24 VDC Current consumption
50 or less mA Pressure Range 0 ~ 100 kPa Accuracy(Offset, Span, Linearity) ± 1% ± 2%
%FSO Temperature Compensated Range
0
50 ℃ Operation Temprature
-25 70 ℃ Selectable units ㎏f/㎠, bar, psi, mmHg, inHg Analog voltage output 1 5 VDC Power loading Time 3 10 min Operation indicators
Comparative Output 1 lights up when Comparative Output 1 is ON Comparative Output 2
lights up when Comparative Output 2 is ON Output modes (4 Types of modes)
Hysteresis mode, Window comparator mode, Dual output mode, Automatic sensitivity setting mode
Hysteresis
1 digit(However,variable in hysteresis mode and 2 digit when using psi unit) Comparative outputs NPN output Burst Pressure 5 × F.S Applicble fluid Air(Non-corrosive gas) Size 30*30
mm Pressure port Cable 비고 - Red: (+12V ~ +24V)
- Black: (GND)
- Green: (Analog Output)
- White: (OUT2)
- Yellow: (OUT1)
Others

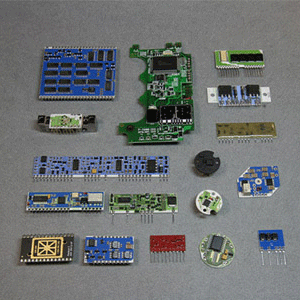

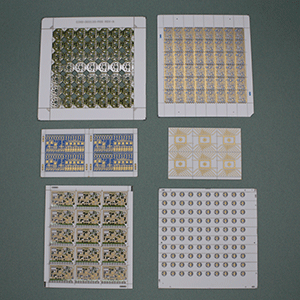

- HIC Assembly
